16kWh 51.2V 314Ah Wall-Mounted Power

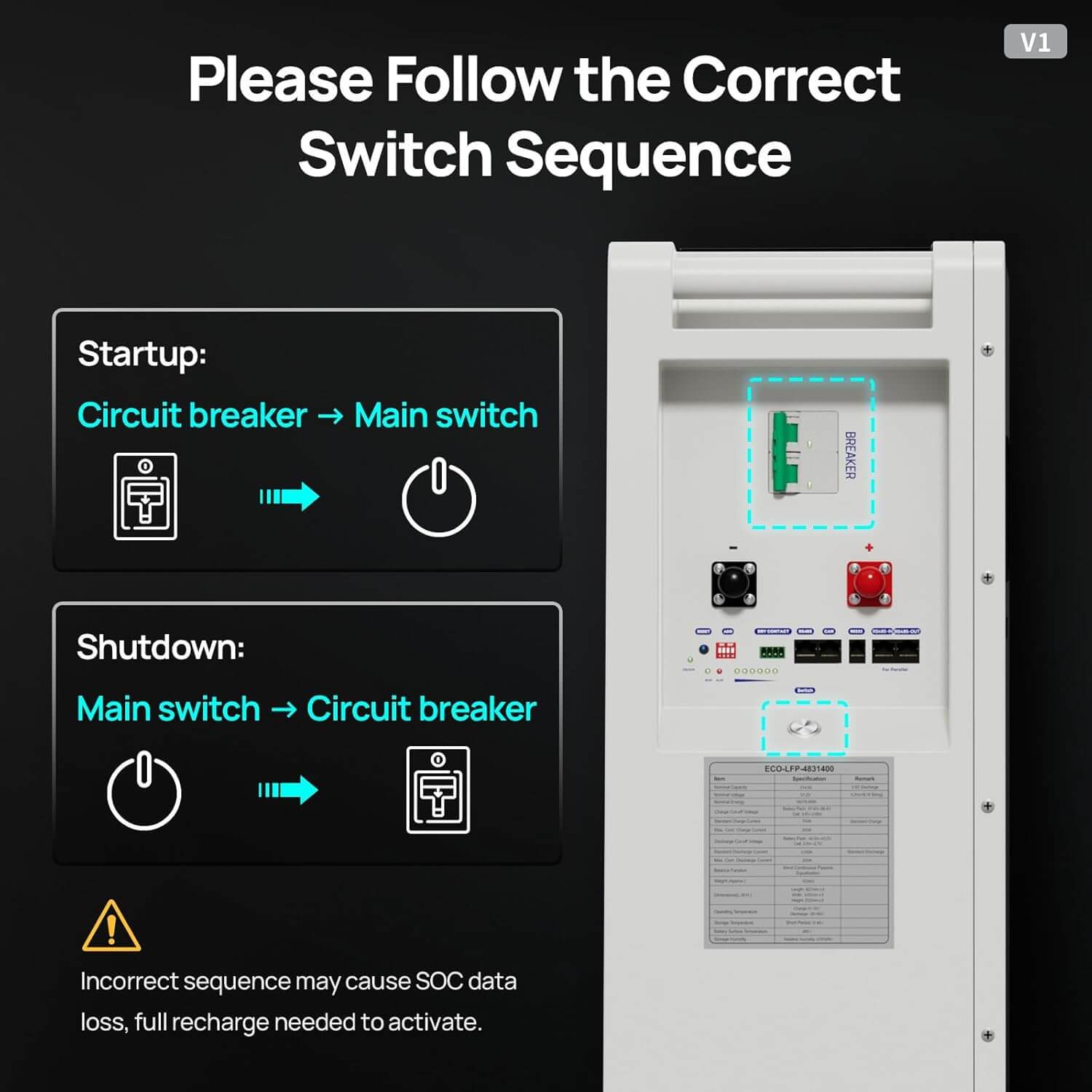

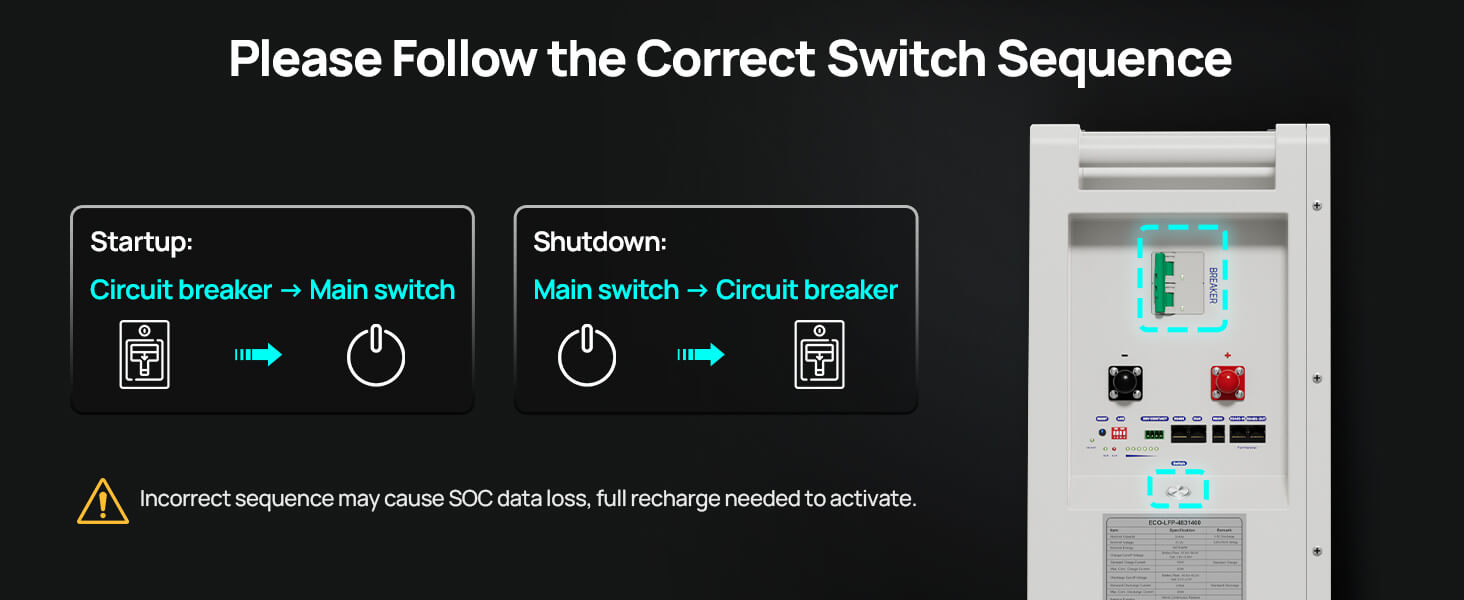

Reliable Dual Protection:The YC 48V 314Ah lithium battery is equipped with a robust PACE 200A Battery BMS and breakers for enhanced circuit protection. The BMS offers six layers of safety features, while the dual breakers safeguard both the positive and negative poles during overloads or short circuits. Features genuine Grade A battery cells with 6,000 cycles at 80% SOH—ensuring long-term reliability and stable performance.

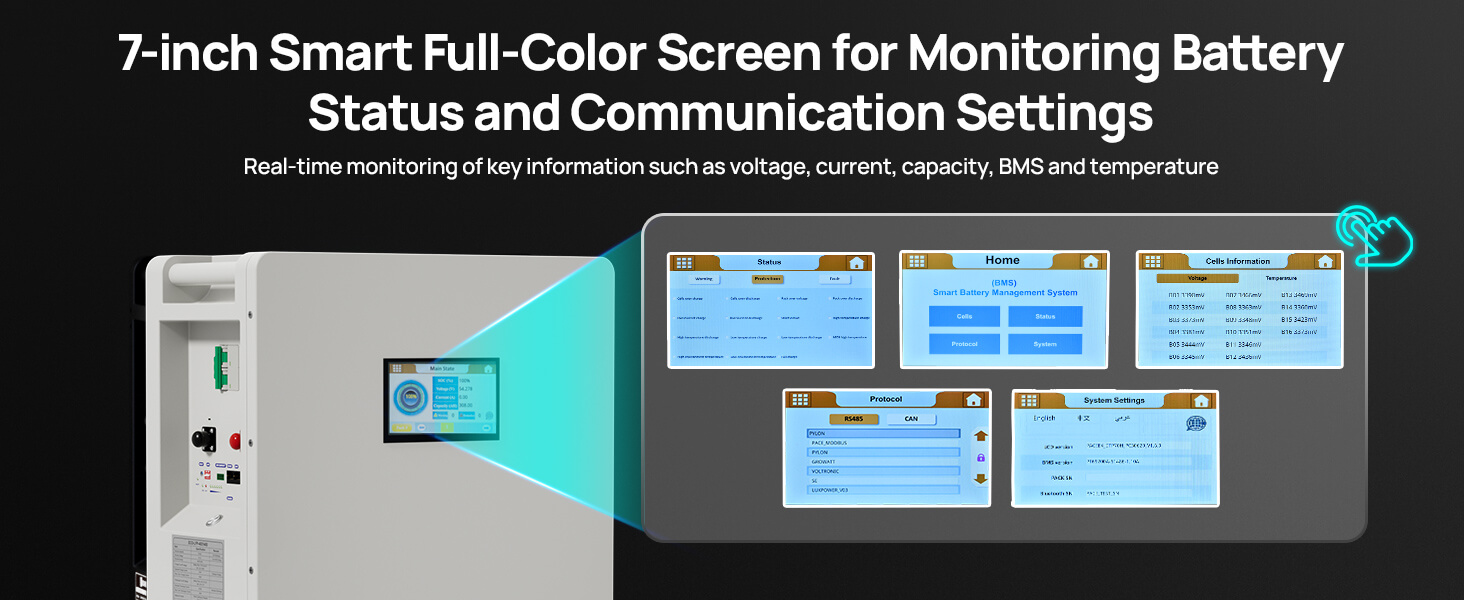

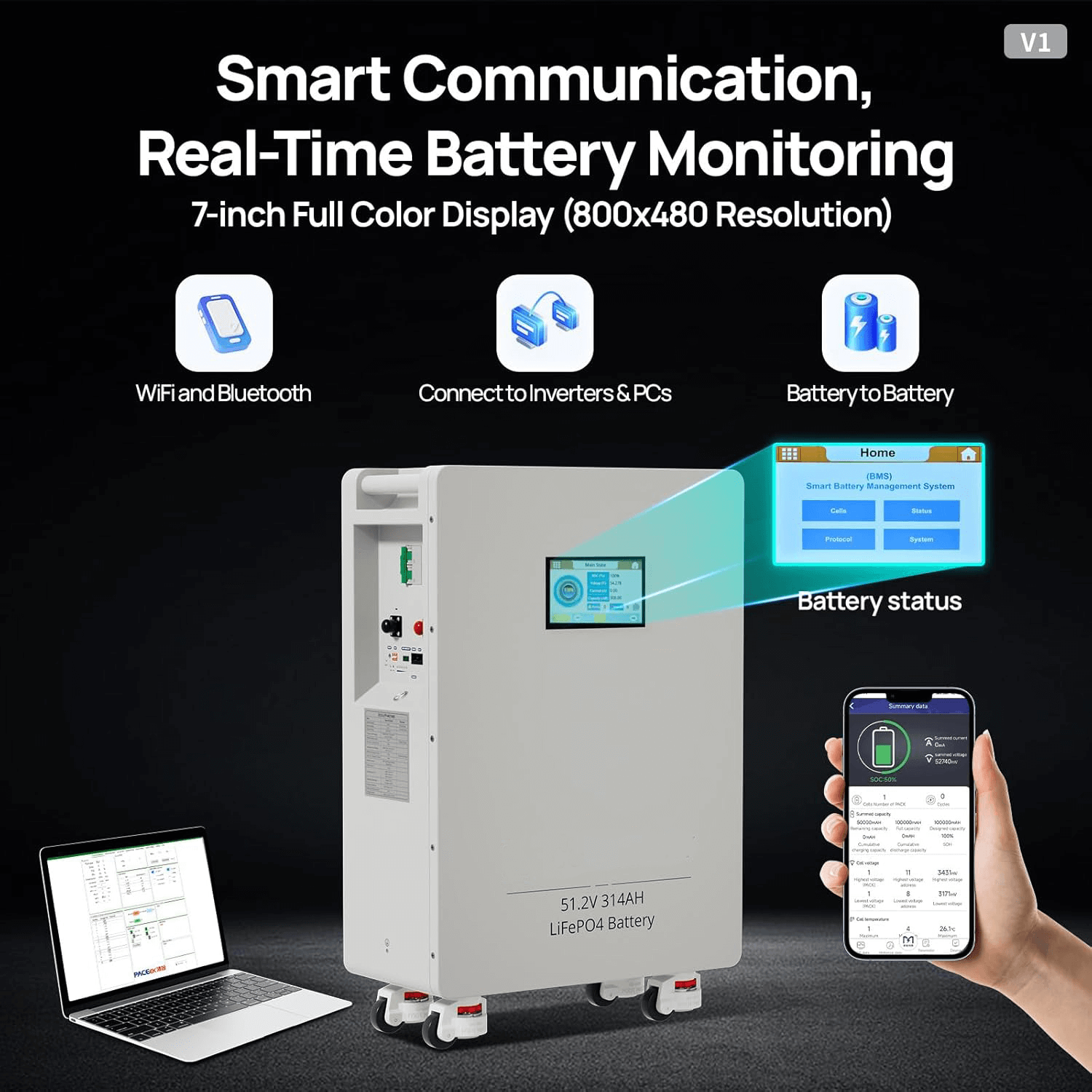

Multi-Channel Monitoring: Stay informed through a bright 7-inch full-color display (800×480), or remotely via Bluetooth/Wi-Fi for real-time status and communication settings. An RS232 port also enables easy PC connectivity with dedicated software.

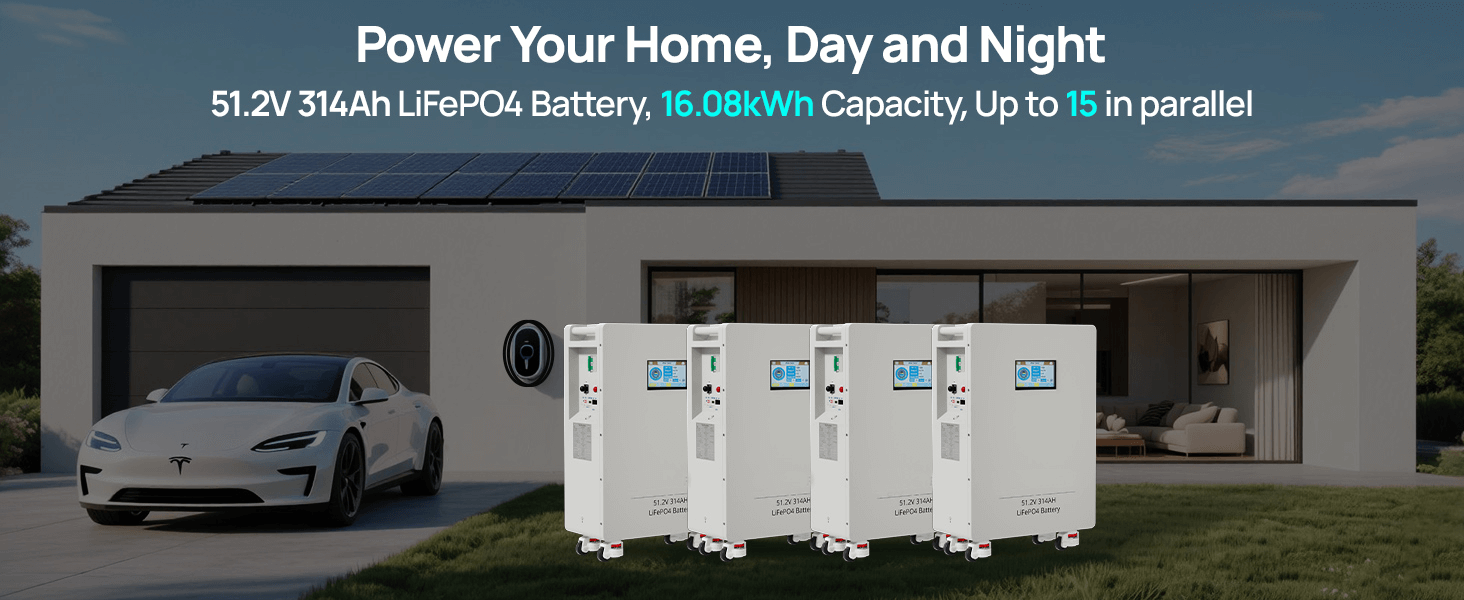

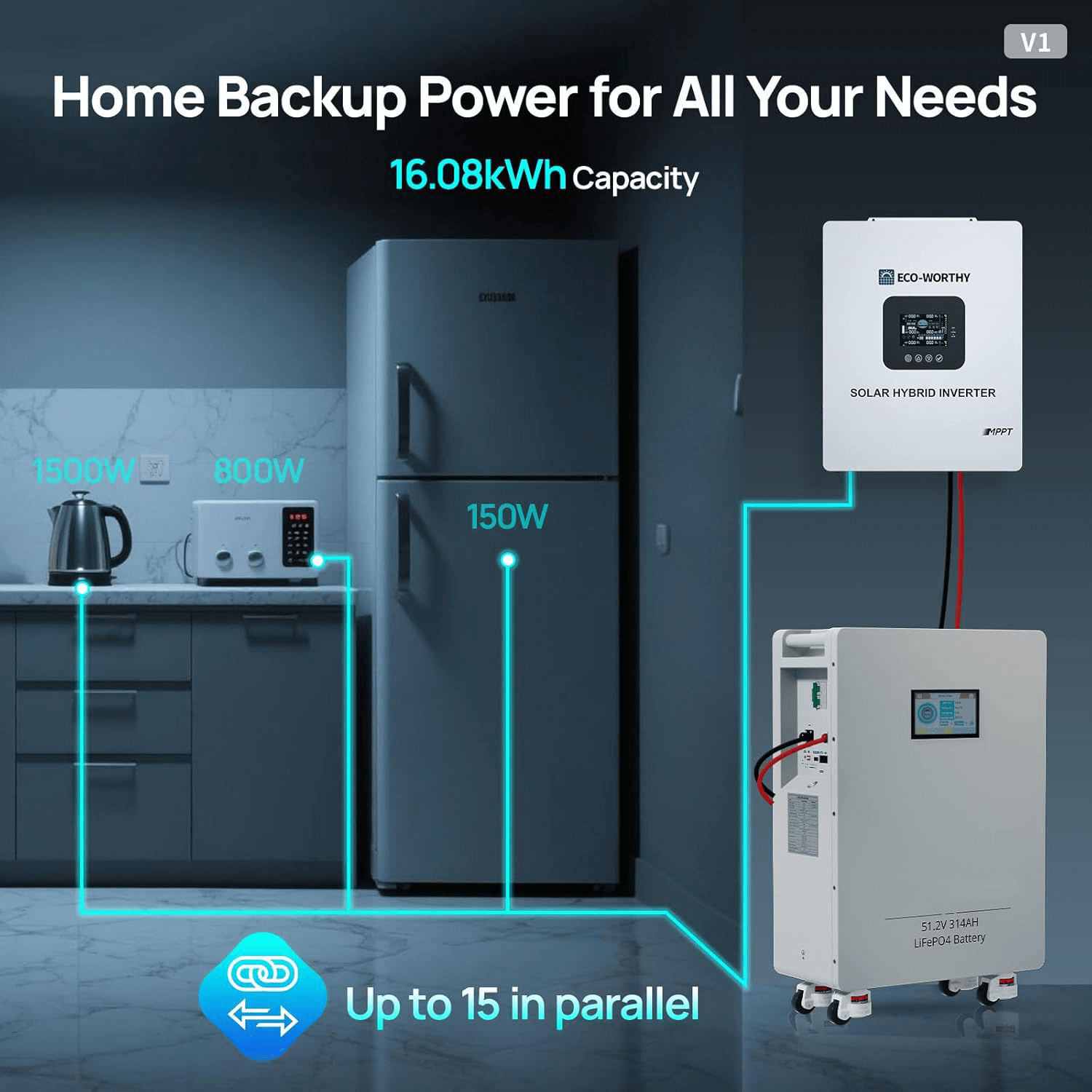

Massive Capacity, Compact Design: With an upgraded capacity of 16.076 kWh, this battery delivers robust energy in a space-saving footprint. Scale up to 241 kWh by connecting up to 15 units in parallel—ready to handle outages with ease.

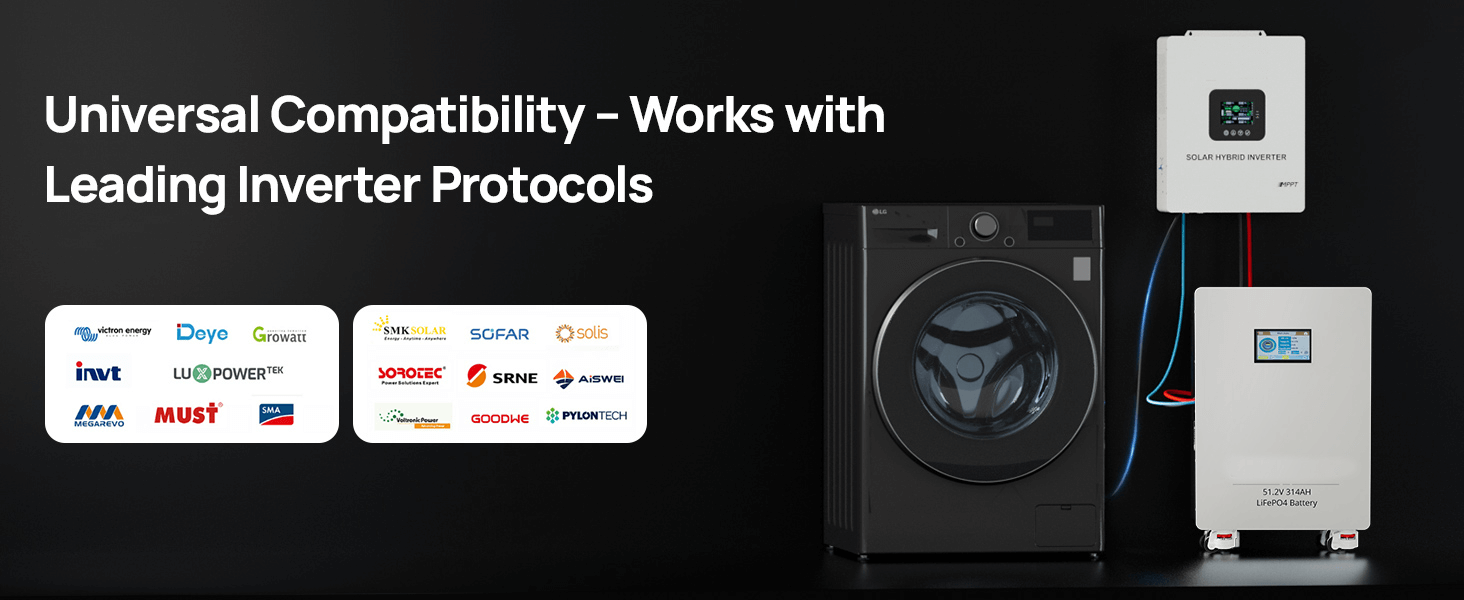

Smart Compatibility: Equipped with RS485 and CAN interfaces, the battery seamlessly communicates with mainstream inverters for closed-loop control and system harmony.

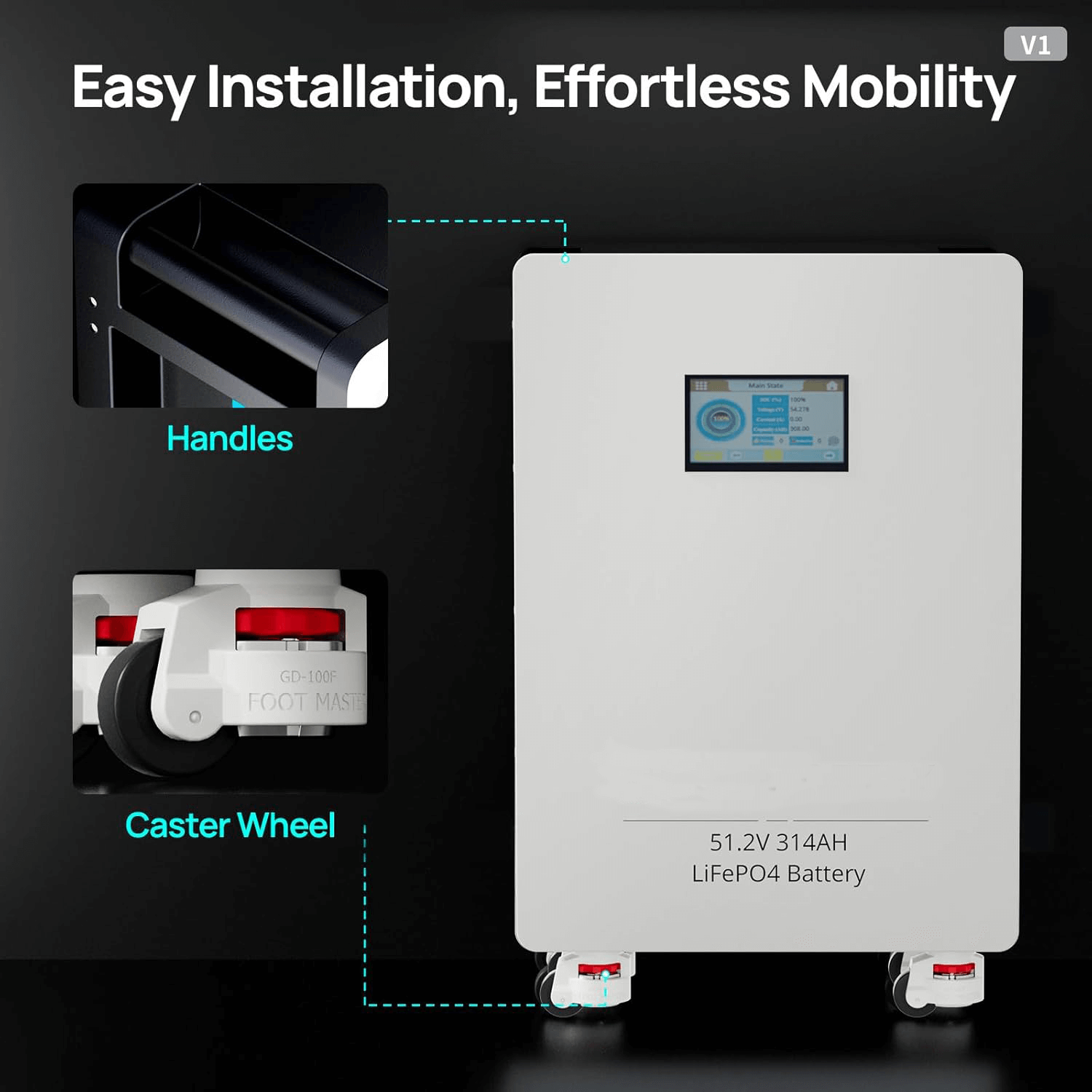

Effortless Setup & Mobility: Designed with integrated handles and wheels for smooth, flexible positioning—making installation as simple as it is secure.

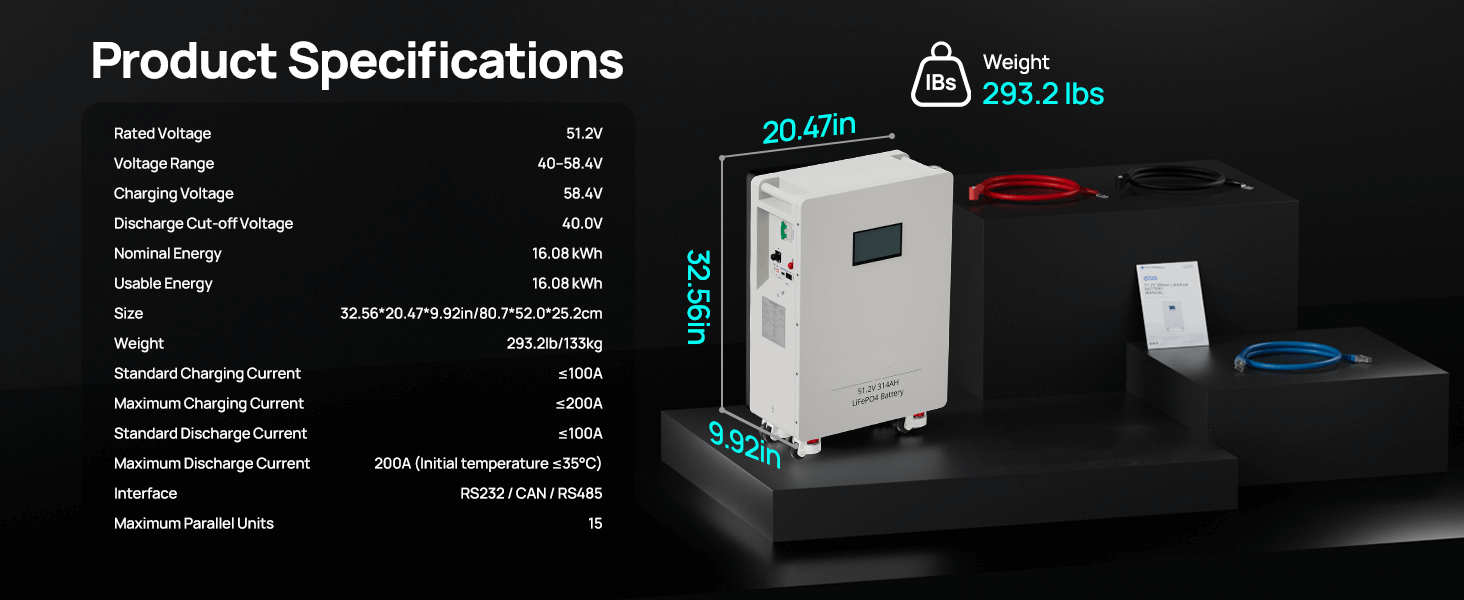

| Brand | YC |
|---|---|
| Capacity | 16.1KWh |
| Max.Charge/Discharge Current(A) | 200A |
| Voltage Range(Vdc) | 40V~58.4V |
| Communication Port | CAN, RS-232, Rs485, Wifi, Bluetooth |
| Cycle life | 6000+ Times@25℃ |
| Design Life | ≥15Years(25°C) |
| Dimensions | 20.47″D x 9.92″W x 32.56″H |
| Weight | 133kg |
| Maximum Parallel Units | 15 |
| Certificate | CE/RoHS/UN38.3/MSDS |
